Precision Pins & Dowel Pins

Precision pins and dowel pins made to your drawing, with dimensions, material and treatment as specified.

  • Pins and dowel pins made to your drawing
  • Dimensions, material and treatment as specified
  • Turning, grinding and knurling in one plant
  • Inspection to drawing with camera sorting of defined items
Request a quote for this partEmail a drawing

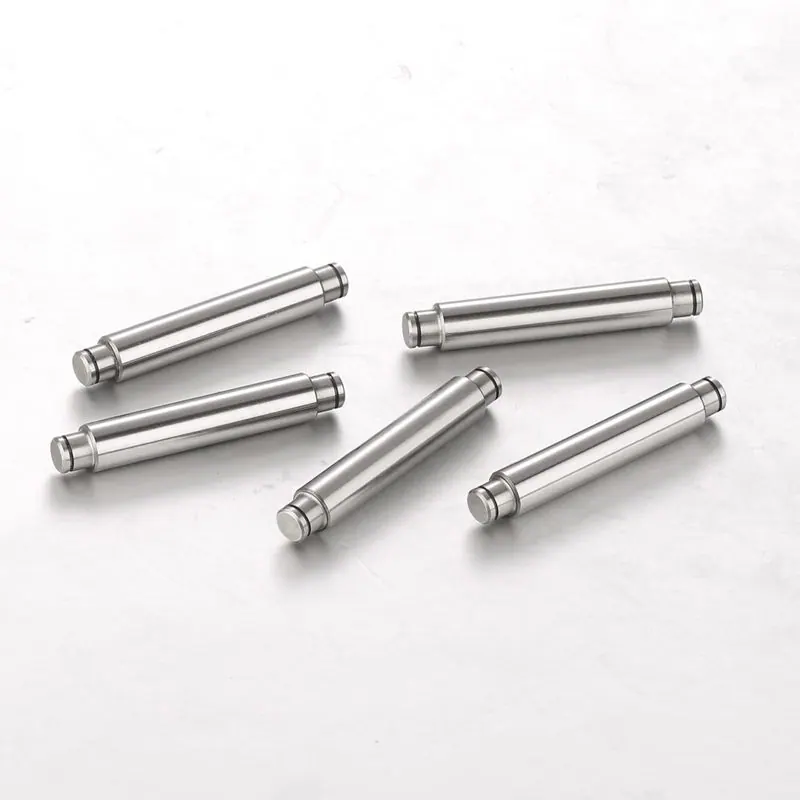

Short precision pins with grooves on a light background

Pins we make

We machine precision pins and dowel pins to customer drawings. Dimensions, material and treatments follow the drawing. Grooves, chamfers, steps and knurled sections are produced in the same turning, grinding and knurling workshops as our shafts.

Every pin is made to order. We do not sell standard catalogue stock.

Materials and treatments

Please state the material grade, standard and condition on your inquiry, together with any heat treatment and surface treatment. Each option is confirmed for the specific part and material during review.

Quality and documentation

Pins are inspected against your drawing and inspection plan. Camera sorting covers 100% of the defined appearance and dimension items. PPAP and Cpk analysis can be provided by project.

Parts made to customer drawings. Photographs show typical features, not standard catalogue items.

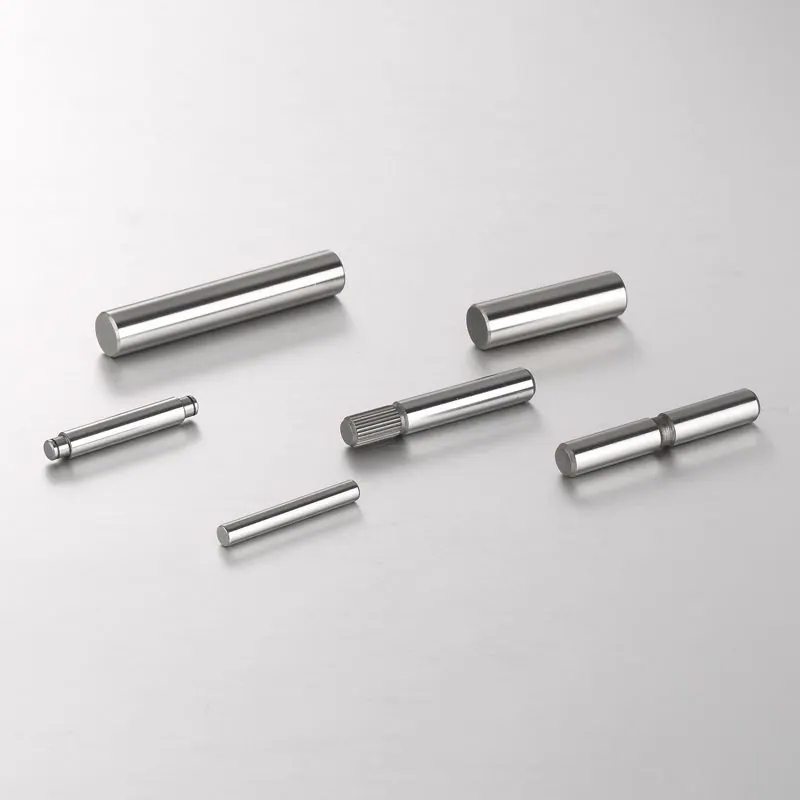

  • Short plain and grooved pins

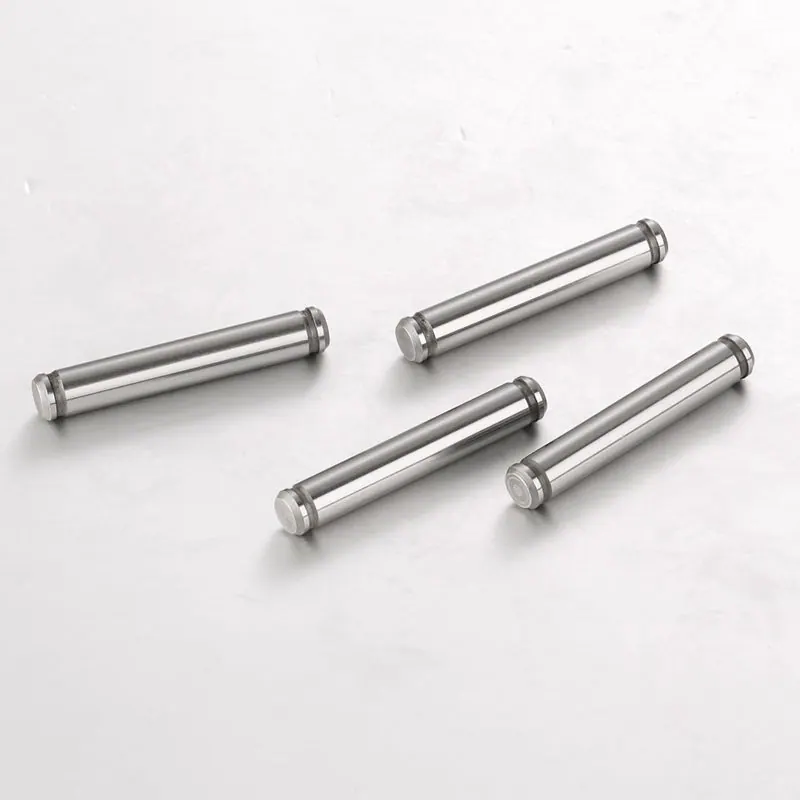

  • Pins with stepped ends

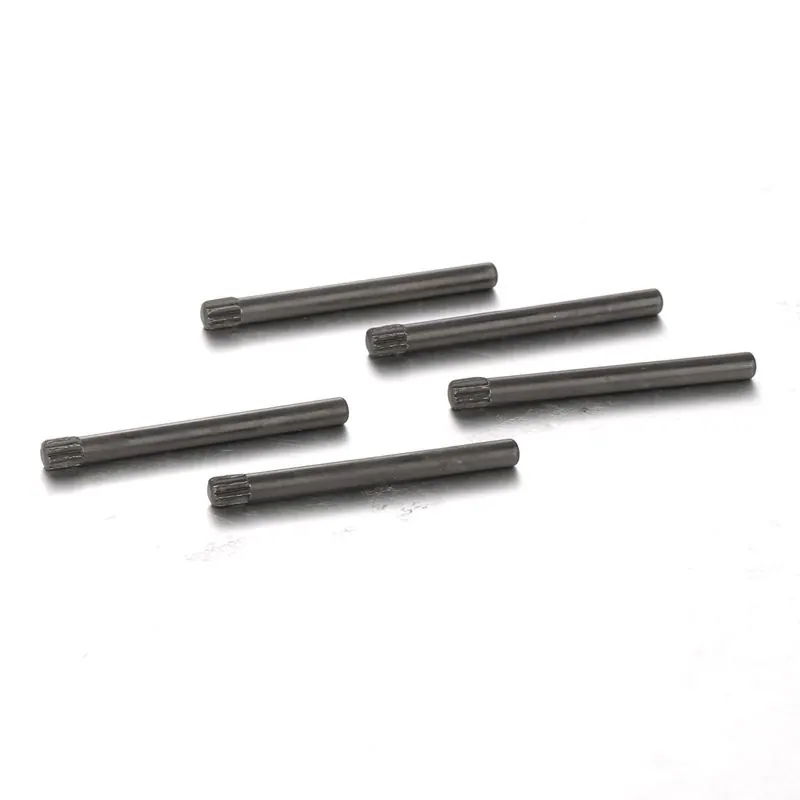

  • Pins with a black surface finish

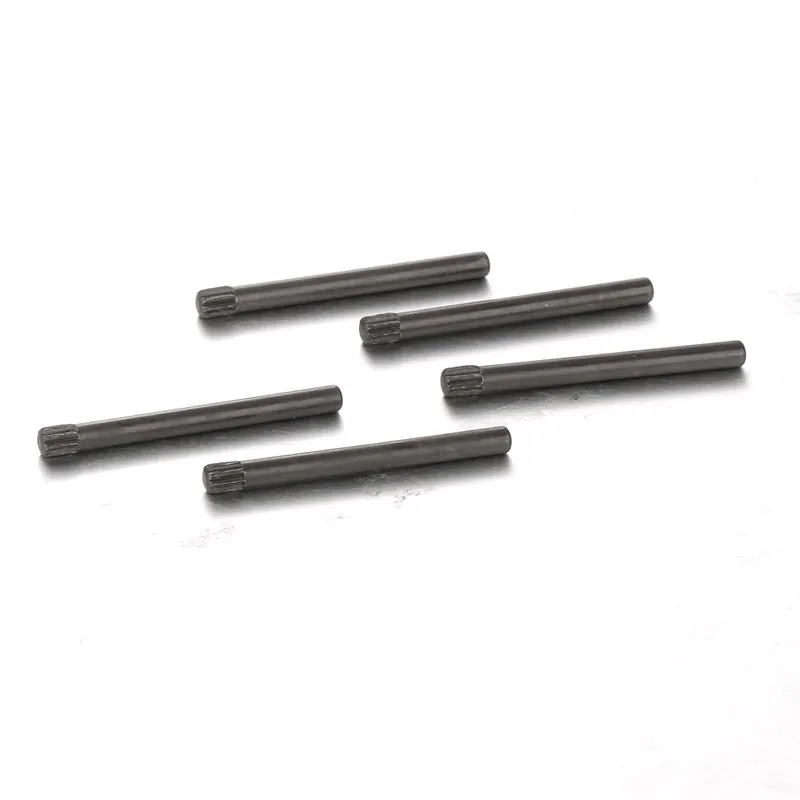

  • Black-finished pins, second view

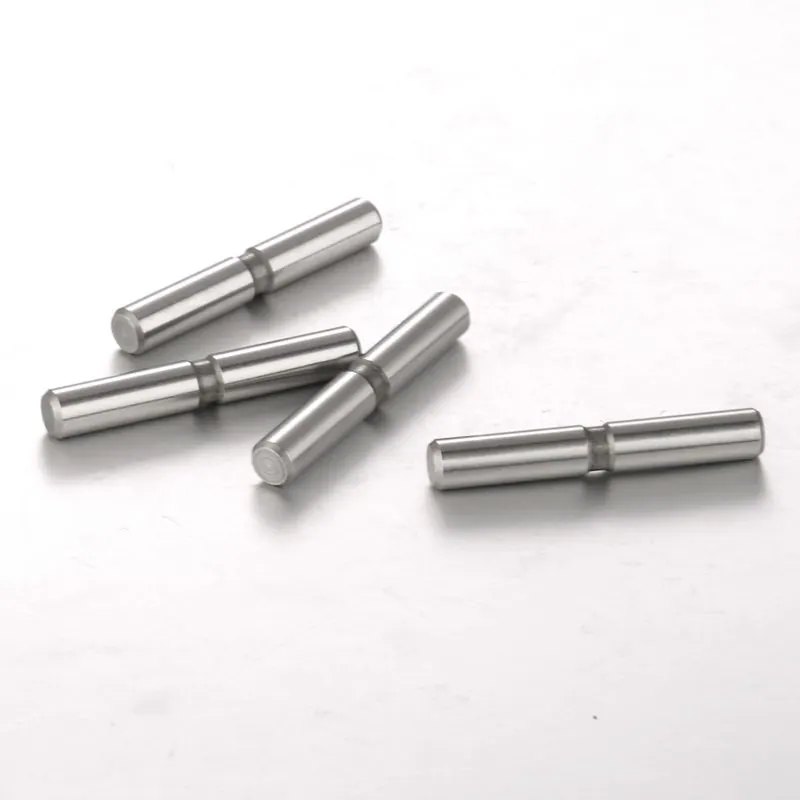

  • Stepped pins and short shafts

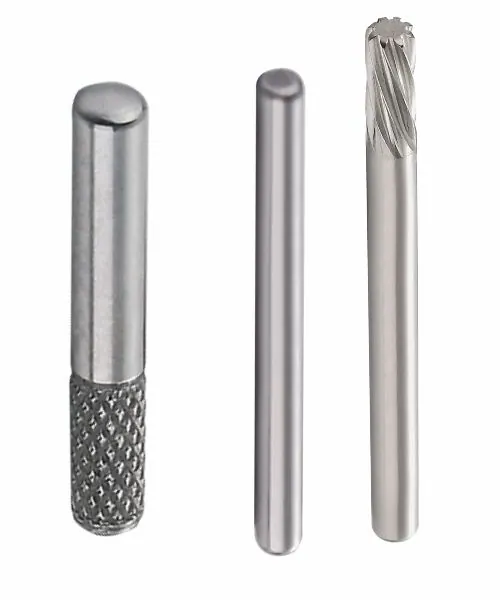

  • Knurled, plain and fluted pins from the MICRO product overview

Key facts

Minimum order
2,000 pcs per partSamples excluded
Samples
Paid samples and trial runsQuantity, price and timing agreed beforehand

Applications

Questions

Do you make standard dowel pins from stock?

No. We make pins to your drawing. Please send the drawing and quantities for review and a quotation.

Can you make a pin from a sample?

Yes, you can send existing samples for our engineers to evaluate, together with the material, quantity and application. An evaluation is not a commitment to price or manufacture.

What is the minimum order quantity?

Our usual minimum is 2,000 pieces per part, samples excluded. Special materials, structures and quantities are reviewed by sales and engineering.

Send your drawing for review

Start an inquiry

  1. Submit the inquiry form

    Part, quantity, application and requirements. You receive an inquiry reference straight away.

  2. Email your drawing

    Send drawings or files to [email protected] and quote the reference.

  3. Engineering review and quote

    We check manufacturability and reply with questions or a quotation.
