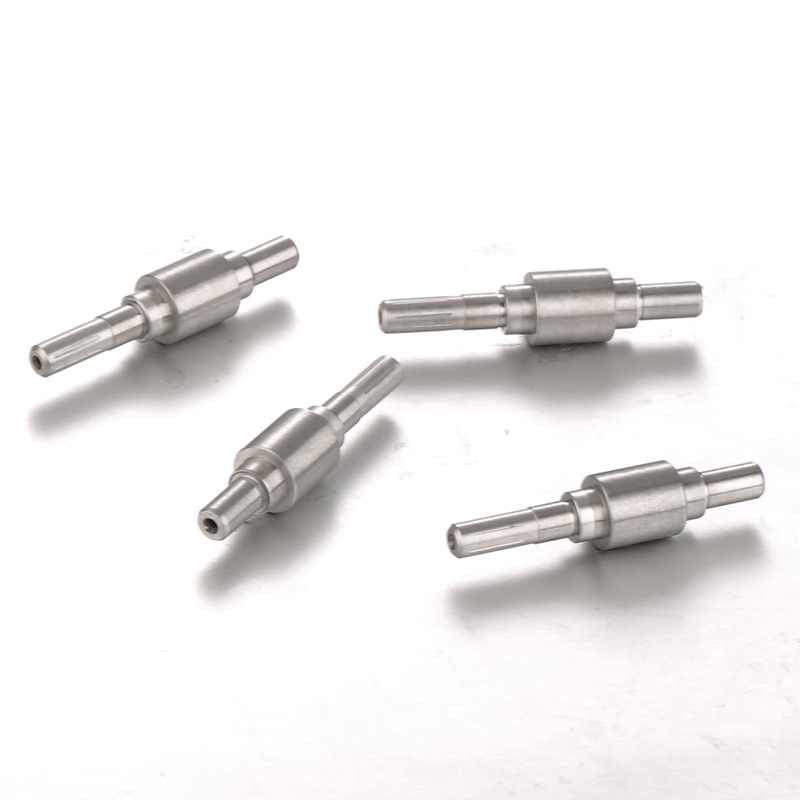

Medical Shaft

1

Material

Steel grade:

10#, 18#, 1018, 22#, 1022, 40Cr, 45#, 1045, 50#, 55#, 60#, 65Mn, 70#, 72B, 80#, 82B, B7, 20CrMo, 42Crmo, SCM415, SCM440, 4140, GCr15, 52100, SUJ2, 12L14, 12L15,

1Cr13, 2Cr13, 3Cr13, 4Cr13, 1Cr17, SUS410, SUS420, SUS430, SUS416, SUS440C,

17-4, 17-4PH, 130M, 200, 201, 202, 205, 303, 303Cu, 304, 316, 316L

Aluminum grade: 6061-T6

2

Diameter

0.3-25mm, tolerance: 0.002mm

3

Roundness

0.0005mm

4

Roughness

Ra0.05

5

Straightness

0.005mm

6

Hardness

HRC/HV

7

Length

2mm-1000mm

8

Heat treatment

1, Oil Quenching

2, High frequency quenching

3, Carburization

4, Vacuum Heat treatment

5, Mesh belt furnace heat treatment

9

Surface treatment

1, Plating nickel

2, Plating zinc

3, Plating passivation

4, Plating phosphating

5, Black coating

6, Anodized treatment

10

Packing

Plastic bag inside and standard carton outside.

Shipment by pallets or according to customer's packing specification.
